Concentricity or Catastrophe: The Barrel–Suppressor Alignment Problem That Steals Accuracy and Causes Baffle Strikes

TL;DR for Skimmers

• Concentricity is the hidden variable that links suppressor accuracy (POI shift, group size, flyers) to the worst-case failure mode (baffle/endcap strikes).
• Misalignment creates uneven gas flow during transitional ballistics—the chaotic interval immediately after muzzle exit—pushing bullets off-axis and amplifying yaw/wobble.
• The cheapest insurance is a real alignment rod used on the full mount stack (barrel → adapter/muzzle device → suppressor). SureFire explicitly recommends verifying barrel-to-adapter-to-suppressor alignment, calling bore rods the most effective confirmation method. (SureFire)
• If your “suppressor host” is a factory threaded pistol or carbine, you’re not automatically safe—thread quality and shoulders vary. (Examples: CZ P-07 Suppressor Ready and Glock 45 Suppressor Ready are great hosts, but still deserve an alignment check.)

What you’re dealing with	What it looks like on target	What it can break	Fastest way to diagnose	Best “buy once” tools/products
Non-concentric barrel threads / crooked shoulder	Random POI shifts, “mystery flyers,” groups that won’t tune	Endcap/baffle clips → catastrophic tube/baffle damage	Visual + alignment rod check, shoulder inspection	SureFire Bore Alignment Rods (Brownells) / Griffin Alignment Check Rod (Griffin Armament)
Tolerance stacking in mounts/adapters	POI shift that changes when re-mounted	Mount wear, strikes from “looks fine” setups	Check alignment with the full stack installed	Strike “Send-It-Sticks” Carbon Rod Kit (strikeindustries.com)
Asymmetric gas release at muzzle (transitional ballistics)	Vertical stringing, unexplained dispersion, velocity loss	Not always a strike—often “just” accuracy loss	Compare suppressed vs unsuppressed groups & chrono	Transitional ballistics is where muzzle forces can still perturb flight
Loose/tilted suppressor seating	Wandering zero, intermittent flyers	Strike risk spikes with heat + carbon	Re-check after heat cycles / cleaning	“Verify alignment… most effective way” = bore rods (SureFire)

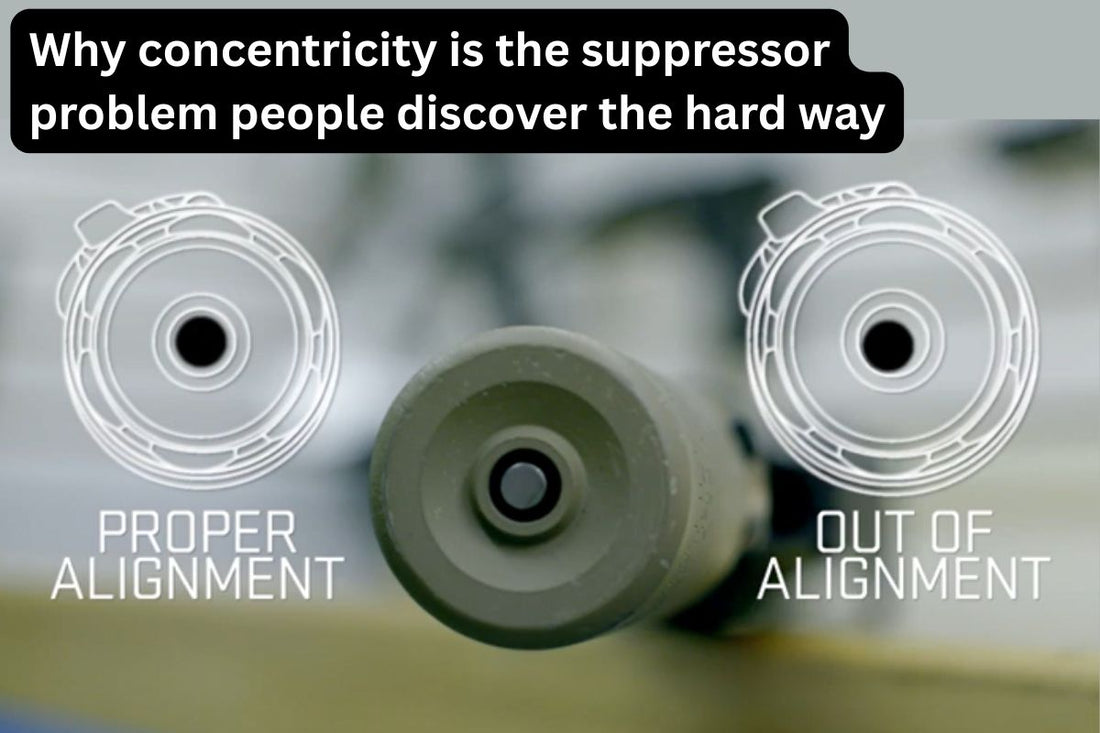

Why concentricity is the suppressor problem people discover the hard way

“Barrel-to-suppressor concentricity” sounds like machinist trivia—until it starts showing up as mysterious accuracy loss or a baffle strike that turns a premium can into a repair ticket.

At a physics level, the suppressor lives at the worst possible place to be sloppy: the muzzle. That’s where pressure is still violently reorganizing itself around the projectile. Transitional ballistics is literally the study of projectile behavior from muzzle exit until pressure equalizes. And as one research paper on suppressor effects puts it, unequal pressures around the projectile can influence flight dynamics (yaw/drag/velocity aren’t always negligible). (arxiv.org)

If the bore axis and suppressor axis aren’t coaxial, you don’t just risk contact—you risk asymmetric gas escape that pushes the bullet off-axis right as it’s trying to “go to sleep” (damp yaw and settle into stable flight). Applied Ballistics summarizes the starting point bluntly: “The bullet leaves the barrel with some degree of pitching and yawing motion.” (Applied Ballistics) Your job is to not make that initial condition worse.

If you want the most practical framing:

• Accuracy problems = the common penalty for mild misalignment + ugly muzzle gas symmetry.
• Baffle strikes = the rare but expensive penalty when misalignment crosses the geometry line.

Quick definitions (so we can be precise)

• Concentricity: how closely two axes share the same centerline (here: barrel bore axis vs suppressor bore/baffle axis).
• Transitional ballistics: the “muzzle exit chaos zone” where gas still influences projectile motion.
• Yaw, precession, nutation: off-axis pointing and wobble modes that increase drag and can move POI.
• Baffle strike / endcap strike: bullet (or destabilized bullet path) contacts internal suppressor geometry.

11 hidden dangers of barrel–suppressor misalignment (and what they do to accuracy)

1) Off-axis muzzle threads: the misalignment you can’t “see” from the outside

The most common root cause is brutally simple: threads cut slightly off the bore axis. The suppressor follows the threads, not your intentions.

What it does

• Creates a constant angular error that becomes a radial offset at the endcap (worse on long cans, smaller bores, tighter endcaps).
• Often produces inconsistent accuracy symptoms: the gun “kind of” groups, but opens unpredictably.

Pro tip: if you’re chasing unexplained suppressor POI shift, stop blaming only “added weight” and start treating the muzzle as a precision interface.

2) The “crooked shoulder” problem: square matters more than people admit

Even with perfect threads, a suppressor can seat crooked if the muzzle shoulder isn’t square to the bore axis. This is how you get rigs that align “close” but still clip.

Accuracy symptom pattern

• “Good” group shape but shifted zero, plus periodic flyers when the mount reseats slightly differently.
• On pistols, the effect can be masked by other variables—until it’s not.

3) Tolerance stacking: each adapter is a lottery ticket you didn’t mean to buy

Every interface adds tolerances:

• barrel threads
• shoulder
• muzzle device
• shims/spacers
• QD mount
• suppressor mount
• suppressor bore/baffle stack

Individually, each can be within spec. Together, they can drift into “strike country.”

This is why industry guidance emphasizes verifying alignment on the full system. SureFire’s language is unusually direct: verify barrel-to-adapter-to-suppressor alignment on new or unshot setups, and it calls bore rods the most effective way to confirm it. (SureFire)

4) Asymmetric gas escape: the stealth accuracy killer (even without contact)

Even if the bullet never touches a baffle, misalignment can degrade accuracy by changing how gas escapes around the projectile during the transitional window. That’s exactly the regime where muzzle forces can still perturb flight.

What it does to the bullet

• Adds yaw impulse → more precession/nutation → more drag → more velocity loss and drop.
• Turns “predictable” wind calls into overconfident wind calls, because the projectile is flying dirtier than your solver assumes.

On paper, it looks like

• POI shift of inches at 100 yards (especially with repeatable remount differences)
• Groups that widen more than your load development would justify

And yes: suppressors can either worsen or mitigate this depending on how symmetrically they manage gas.

5) “Suppressor POI shift” isn’t a single phenomenon—misalignment makes it chaotic

Many shooters treat POI shift as inevitable and mostly vertical (weight on the muzzle). Reality is messier: POI shift is common, but its direction/magnitude depends on the whole system. (Silencer Central)

Where misalignment bites

• It converts a stable, repeatable POI shift into a variable shift.
• You start seeing “return to zero” become “return to… somewhere near zero.”

6) Baffle strikes: from “tiny kiss” to catastrophic failure

Baffle strikes aren’t binary. They’re a spectrum:

• Minor endcap clip: accuracy degradation + cosmetic/internal damage
• Baffle clip: destabilization gets worse; subsequent shots can spiral into major damage
• Catastrophic event: structural failure of baffles/tube (especially under high pressure/heat)

SureFire’s own explainer frames alignment as the key preventative control and points to bore rods as the practical confirmation method. (SureFire)

7) Smaller bores and tight endcaps: performance up, tolerance down

You already know the trade:

• Tighter apertures can improve suppression and sometimes reduce backpressure/flash in some designs.
• But your alignment budget shrinks.

If you’re running tight endcaps, you’re implicitly demanding:

• better barrel threading
• better mount repeatability
• better inspection discipline

8) Heat and carbon: alignment can degrade during a session

A setup that passes a cold check can drift once:

• carbon builds on tapers/shoulders
• mounts heat-soak and expand differently
• threads gall or “walk” if not properly seated

This is one reason alignment tools are recommended as habitual checks, not a one-time ritual.

9) Pistol hosts add moving parts—misalignment becomes multi-dimensional

Tilting barrels, boosters, and pistons introduce additional alignment sensitivity compared to rigid rifle barrels.

If you want host examples that start with the right features (threaded barrels, suppressor-height sights), look at:

• CZ P-09 Suppressor Ready
• CZ 75 B Omega Suppressor Ready
• Beretta 21A Bobcat Threaded .22LR
• Glock 45 Suppressor Ready

They’re solid “hosts”—but none of them exempt you from checking concentricity once a specific suppressor/mount stack enters the picture.

10) Rimfire is “low pressure,” but alignment mistakes still get paid for

Rimfire bullets are softer, fouling is heavier, and small bores leave less margin. A minor alignment problem plus a dirty can is how you get “it was fine… until it wasn’t.”

If you’re doing dedicated rimfire suppression, treat cleaning cadence + alignment as a single system.

11) The psychological trap: “It threaded on smoothly, so it must be aligned”

Smooth threading proves only that threads match—not that they’re coaxial to the bore, or that the shoulder seats square.

That’s exactly why alignment rods exist, and why manufacturers emphasize them.

The professional workflow: confirm alignment without turning it into a religion

You don’t need voodoo—just a repeatable process.

A) The two best diagnostic tools (buy once, cry once)

1. Bore alignment rods (top pick)
• SureFire Bore Alignment Rods (SureFire)
• Griffin Armament Suppressor Alignment Check Rod (Griffin Armament)
• Strike Industries “Send-It-Sticks” Carbon Kit (strikeindustries.com)

What the experts say: SureFire says bore rods “most closely represent the bullet flight path,” and are the “most effective” way to confirm alignment. (SureFire)

2. A competent machinist/gunsmith with the right metrology
• Especially if you suspect shoulder squareness or thread coaxiality issues.

B) What you’re actually checking (conceptually)

• With the suppressor mounted exactly as fired, the rod should visually indicate a centered path through the suppressor bore/endcap.
• If you see meaningful offset, stop and fix the interface (barrel threading/shoulder, mount stack, or suppressor mount).

(Keeping this high level on purpose: the “how” is easy; the interpretation is where experience matters.)

Direct-thread vs QD mounts: pros/cons (and where concentricity fails)

Direct-thread

Pros

• Fewer interfaces → fewer tolerance stack opportunities
• Often lighter and simpler
• Great for dedicated hosts

Cons

• Relies heavily on thread quality + shoulder squareness
• Heat can make removal painful; carbon can “lock” threads
• Repeatability varies by manufacturer and user technique

QD (taper/locking systems, etc.)

Pros

• Faster on/off
• Some designs self-center well if the taper geometry is done right
• Better for multi-host ecosystems

Cons

• More parts → more tolerance stacking
• Worn locking surfaces can introduce tilt
• Users often trust “it locked” more than “it aligned”

Our opinionated industry take: if you’re chasing maximum precision, direct-thread or a truly high-end taper system wins—but only if your barrel and shoulder are machined like they matter. Otherwise, QD convenience hides more sins until the bill arrives.

Specific products that actually reduce real-world misalignment risk

If your goal is fewer baffle strikes and more repeatable zeros, prioritize:

• Alignment verification (rods):
• SureFire Bore Alignment Rods (SureFire)
• Griffin Alignment Check Rod (Griffin Armament)
• Strike Industries Send-It-Sticks (strikeindustries.com)
• Host guns with factory suppressor-ready features (threaded barrel + tall sights, where applicable):
• CZ P-07 Suppressor Ready (Guns.com)
• Glock 45 Suppressor Ready (Guns.com)
• CZ 75 B Omega Suppressor Ready (Guns.com)
• Beretta 21A Bobcat Threaded .22LR (Guns.com)

The “hidden” accuracy math: why tiny misalignment becomes big misses

Even small angular errors can:

• Start yaw larger (or keep it from damping quickly)
• Increase drag early in flight (where it matters disproportionately for downrange dispersion)
• Make ballistic solvers lie to you (because they assume a cleaner launch)

Research on suppressor effects explicitly notes transitional ballistics isn’t fully understood, and that suppressors can affect muzzle velocity, drag, and yaw in non-trivial ways. (arxiv.org)
That’s the technical way of saying: launch conditions matter, and suppressors live at launch.

Practical checklist: when to worry (and when you can relax)

Worry if you see:

• New suppressor/mount/adapter on a host you haven’t validated
• POI shift that changes after removal/reinstall (not merely “shift exists”)
• “Keyholing,” sudden group blowups, or unexplained flyers
• Any endcap/baffle evidence (shavings, new marks, sound change)

Relax (a little) if:

• Alignment checks clean on the full stack
• POI shift is repeatable and returns consistently
• Groups remain consistent across heat cycles

Bottom line

Concentricity isn’t an internet flex. It’s the quiet dividing line between:

• a suppressor setup that shoots like a system, and
• a suppressor setup that occasionally behaves like a random-number generator—until it clips a baffle.

If you’re serious about accuracy, treat alignment verification as part of the precision stack—right next to torque, ammo consistency, and optic mounting.
